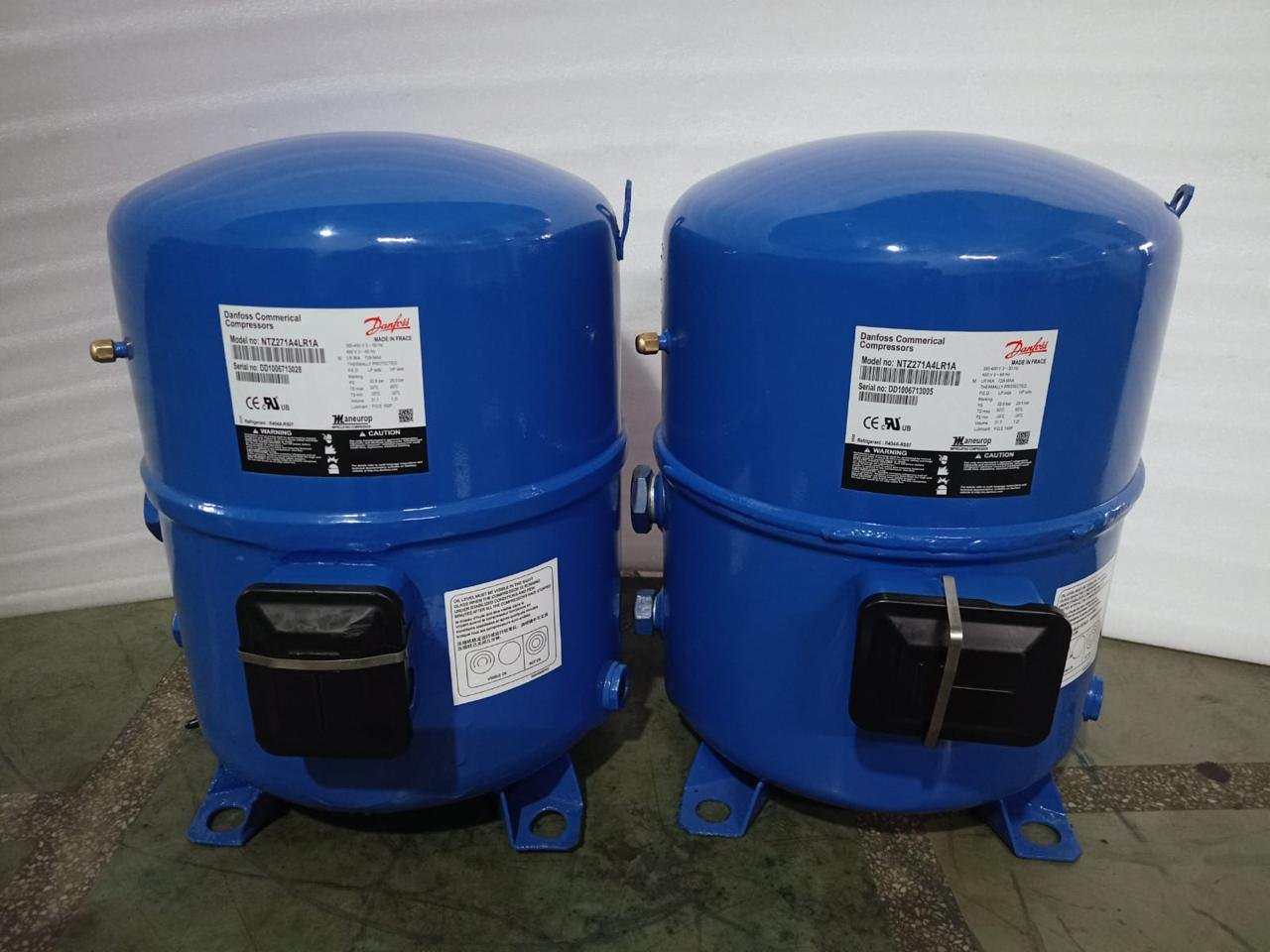

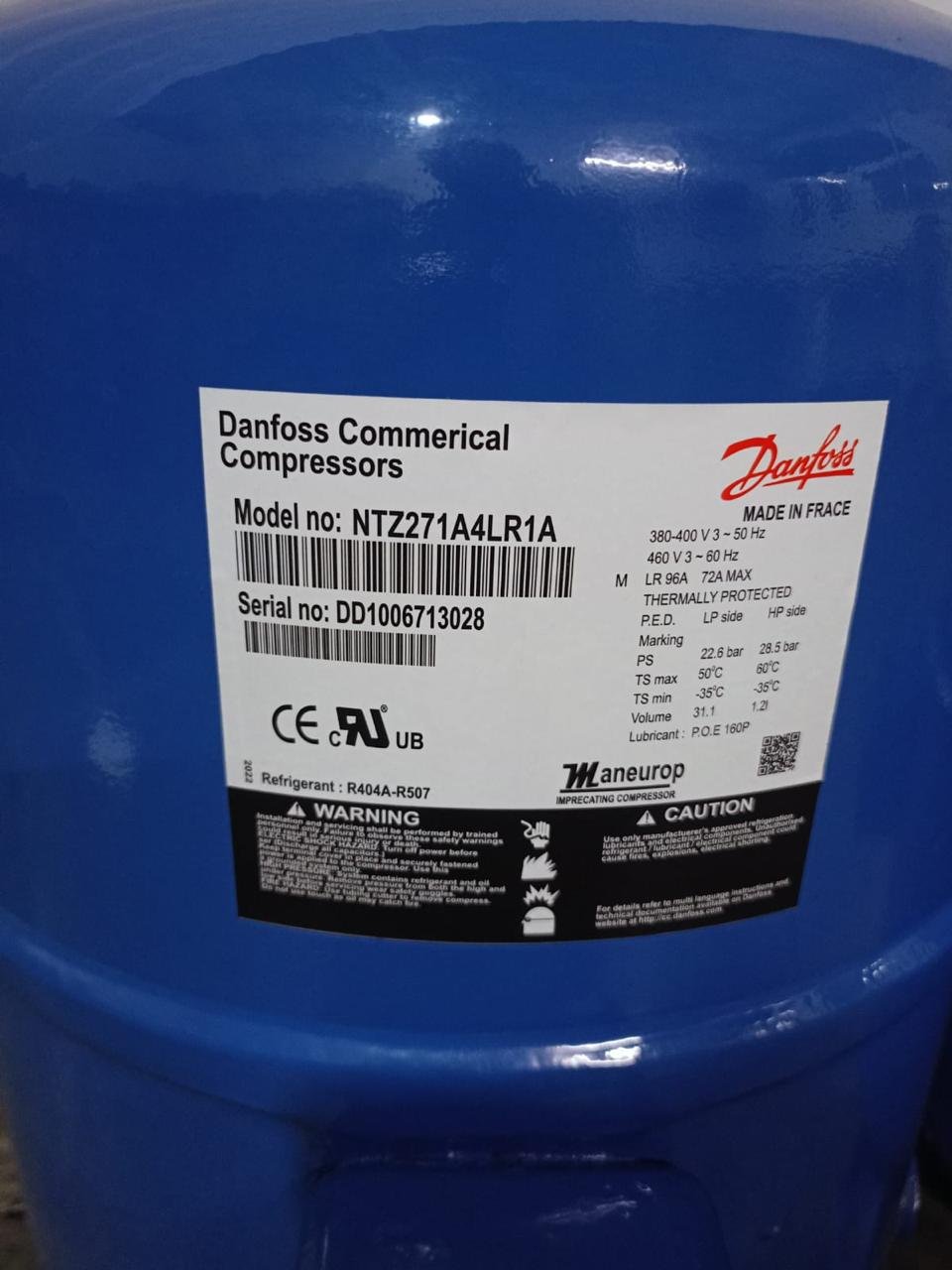

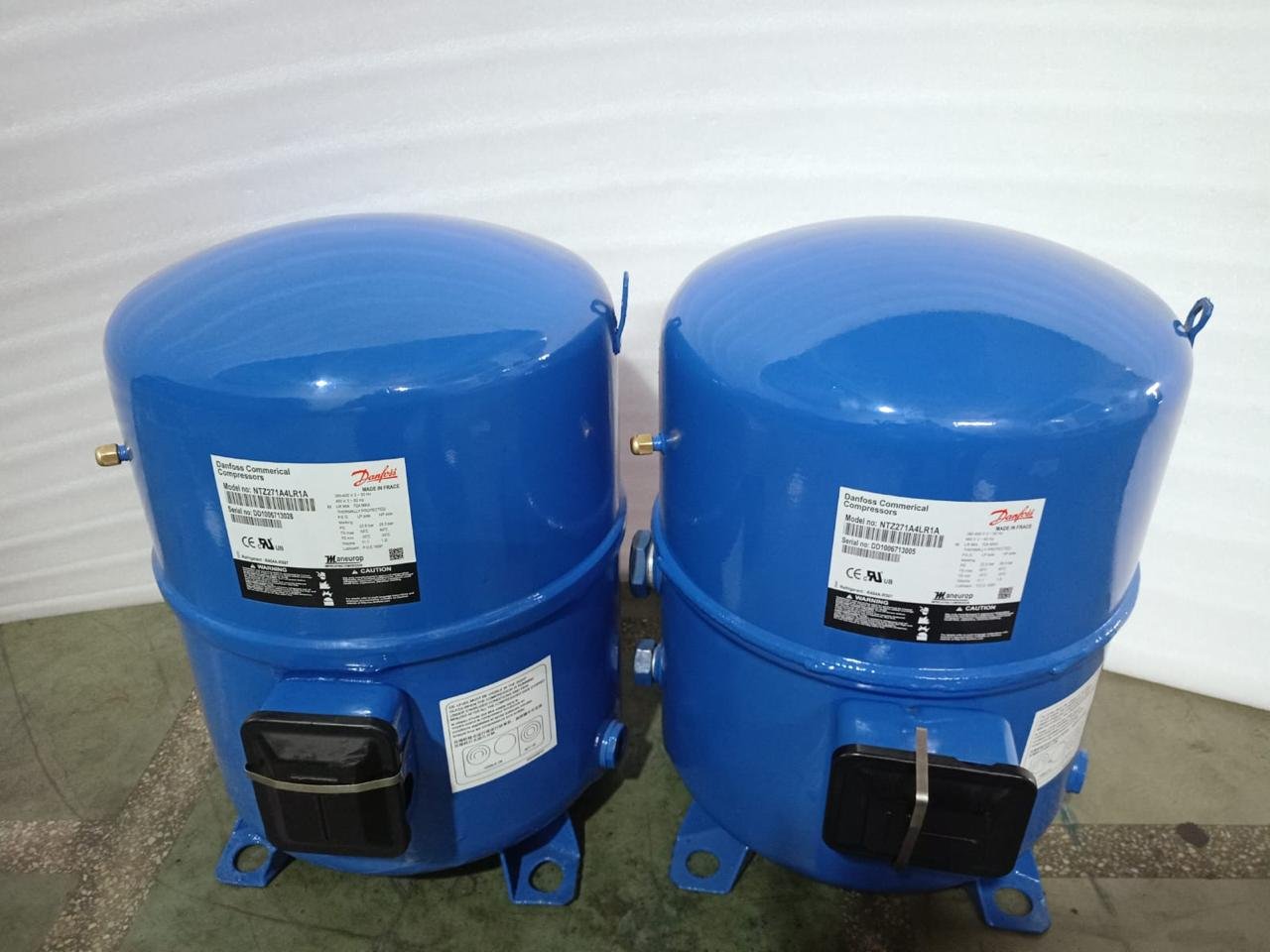

Danfoss NTZ271A4LR1A Maneurop Reciprocating Compressor – R404A/R507, 3-Phase, 31.1L Volume

The Danfoss NTZ271A4LR1A is a Maneurop reciprocating compressor engineered for commercial and industrial refrigeration systems operating at low temperatures. Designed for use with R404A and R507 refrigerants, this unit delivers exceptional performance and reliability under demanding conditions.

✅ Key Specifications:

• Model: NTZ271A4LR1A

• Compressor Type: Hermetic Reciprocating

• Refrigerants: R404A / R507

• Voltage:

  • 380-400V, 3 Phase, 50Hz

  • 460V, 3 Phase, 60Hz

• LRA (Locked Rotor Amps): 96A

• Max Operating Current: 72A

• Volume: 31.1L

• Lubricant: P.O.E 160P

• Manufactured in: France

🧊 Temperature Range:

• Minimum Suction Temp (TS min): –35°C

• Maximum Operating Temp (TS max): 60°C

🔧 Pressure Ratings:

• LP Side: 22.6 bar

• HP Side: 28.5 bar

Features:

• Maneurop technology for durability and low noise

• Optimized for low temperature applications (cold rooms, deep freezers)

• High-pressure capability and thermal protection

• CE and UL certified

• Factory charged with synthetic POE oil
