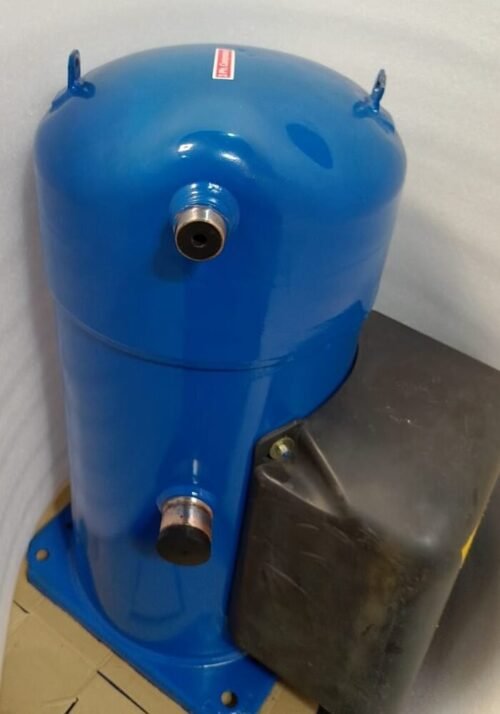

Danfoss Compressor SH300B4AAC

Key Specifications:

  • Model: SH300B4AAC
  • Part Number: 120H0239
  • Refrigerant Compatibility: R410A
  • Displacement: 49.7 m³/h
  • Swept Volume: 285.5 cm³/rev
  • Operating Speed: Approximately 2900 rpm at 50 Hz
  • Weight: 153 kg
  • Oil Charge: 6.7 liters of POE oil (160SZ)
  • Maximum System Test Pressure: Low Side: 30 bar; High Side: 45 bar
  • Refrigerant Charge Limit: 13.5 liters
  • Sound Power Level: 82 dB
  • Electrical Specifications:
    • Voltage: 380-415V/3-phase/50Hz; 460V/3-phase/60Hz
    • Locked Rotor Amps (LRA): 260 A
    • Rated Load Amps (RLA): 46.4 A
  • Physical Dimensions:
    • Total Height: 723 mm
    • Diameter: 333 mm
    • Suction Connection: 1 5/8 inches (ODS)
    • Discharge Connection: 1 1/8 inches (ODS)

Original price was: ₹120,000.00.Current price is: ₹115,000.00.

Enquire Now

Description

Product Information

Key Specifications:

  • Model: SH300B4AAC
  • Part Number: 120H0239
  • Refrigerant Compatibility: R410A
  • Displacement: 49.7 m³/h
  • Swept Volume: 285.5 cm³/rev
  • Operating Speed: Approximately 2900 rpm at 50 Hz
  • Weight: 153 kg
  • Oil Charge: 6.7 liters of POE oil (160SZ)
  • Maximum System Test Pressure: Low Side: 30 bar; High Side: 45 bar
  • Refrigerant Charge Limit: 13.5 liters
  • Sound Power Level: 82 dB
  • Electrical Specifications:
    • Voltage: 380-415V/3-phase/50Hz; 460V/3-phase/60Hz
    • Locked Rotor Amps (LRA): 260 A
    • Rated Load Amps (RLA): 46.4 A
  • Physical Dimensions:
    • Total Height: 723 mm
    • Diameter: 333 mm
    • Suction Connection: 1 5/8 inches (ODS)
    • Discharge Connection: 1 1/8 inches (ODS)

Danfoss Compressor SH300 B4AAC

For large-scale refrigeration and air conditioning applications, the Danfoss SH300 B4ABE Compressor is a dependable, energy-efficient scroll compressor with a big capacity. It has a 30 HP capacity and is appropriate for heavy-duty cooling systems in commercial, industrial, and HVAC applications because to its sturdy construction and sophisticated engineering.

The SH300 B4ABE has excellent durability, low noise levels, and less vibration because it is designed for high-performance operation. It works effectively even in harsh circumstances and is compatible with a variety of refrigerants, including eco-friendly ones. For individuals looking for premium cooling solutions with low maintenance and long-lasting performance, this Danfoss compressor is a reliable option.
