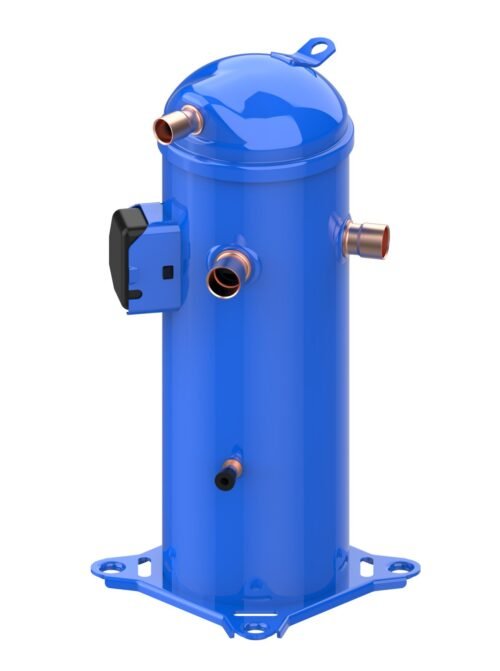

Danfoss Compressor HCP109T4LC6

• Model: HCP109T4LC6
• Brand: Danfoss
• Type: Hermetic Scroll Compressor
• Applications: Commercial and industrial refrigeration, air conditioning systems, and HVAC systems
• Cooling Capacity: Approximately 9.4 kW (3.4 tons) depending on refrigerant and operating conditions
• Refrigerant Compatibility: R404A, R507A, R134a, R22, and R407C
• Power Supply: 380V–420V (Three-phase)
• Frequency: 50Hz or 60Hz (depending on the model and region)

Technical Specifications

• Displacement: Approximately 19.6 cc/rev
• Motor Type: Permanent Split Capacitor (PSC)
• Oil Type: POE (Polyolester) oil for compatibility with modern refrigerants like R134a, R404A, and R507A
• Maximum Operating Pressure: High side: 28 bar, Low side: 8–12 bar
• Voltage Range: 380–420V (Three-phase)
• Motor Protection: Thermally protected to prevent overheating and ensure the longevity of the compressor
• Dimensions: Compact design for easier installation in space-limited areas
• Weight: Around 30–40 kg (depending on the specific model configuration)
• LRA (Locked Rotor Amperes): Approximately 16–20 amps (depending on voltage and configuration)

Features

1. Energy Efficient: Designed to provide high energy efficiency, reducing operational costs in large-scale systems.
2. Quiet Operation: Features scroll technology, which helps in reducing noise and vibration compared to traditional reciprocating compressors.
3. Durability: Built with high-quality materials to ensure a long operational life and consistent performance.
4. Thermal Protection: Integrated thermal protection prevents the motor from overheating during prolonged operation.
5. Wide Refrigerant Compatibility: Can be used with a wide range of refrigerants, such as R404A, R507A, R134a, and R22, making it suitable for various applications.
6. Low Maintenance: The design reduces wear and tear on the compressor, resulting in fewer maintenance needs over time.
7. Compact & Flexible: The small size allows for easy installation in compact spaces, ideal for commercial and industrial applications.
8. Environmental Responsibility: Designed for efficiency, helping to reduce energy consumption and minimize the environmental impact.

Description

The Danfoss HCP109T4LC6 is a high-performance, energy-efficient scroll compressor designed for refrigeration and air conditioning applications. With a cooling capacity of approximately 9.4 kW (3.4 tons), it is ideal for commercial refrigeration, HVAC, and industrial systems. Its durable, compact design ensures long-lasting reliability, and the thermal protection built into the compressor safeguards against overheating. Compatible with a variety of refrigerants such as R404A, R507A, and R134a, the HCP109T4LC6 is versatile and adaptable to different cooling needs. It provides quiet, reliable, and efficient performance, making it a trusted choice for demanding commercial applications.
